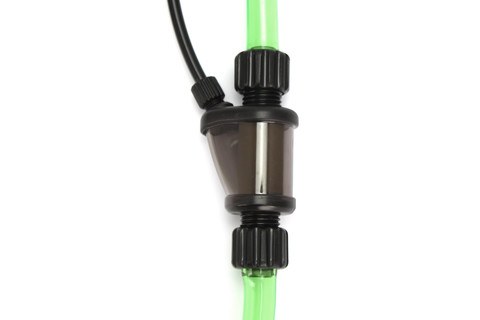

UP Inline Atomizer CO2 Diffuser For 16/22mm Hose

4.8 [33 Reviews]
£36.99
UP Inline Atomizer CO2 Diffuser - for 16/22mm Hose



Key Facts

  • Suitable for 16mm/22mm tubing (16mm internal / 22mm external). Click here for tubing size advice
  • For aquariums up to 500L.
  • Creates a mist of very fine bubbles.
  • Excellent diffusion rates due to high surface area of small bubbles.
  • Bubbles are in the flow of water as it enters the aquarium, so remain in suspension in the water for longer.
  • Diffuser is located outside the aquarium which allows for easy maintenance.
  • No equipment in the aquarium itself.
  • Choose the size for your filter tubing.
  • Requires 2 bar / 30 PSI pressure to function (provided by all CO2 Supermarket regulators).


Description

The inline CO2 Atomizer is arguably the most well known product used for CO2 diffusion, and is a firm favourite with planted aquarium specialists around the world. Designed for use with various filter size tubing, this CO2 diffuser sits inline between your filter and the filter outlet, ensuring that the CO2 has as much contact time with the water as possible. As a result, this atomizer dissolves CO2 very efficiently, and provides a stream of very tiny bubbles which exit directly out of your filter outlet. Furthermore, because it is kept outside the aquarium, maintenance is a very easy.

To use this CO2 atomizer, simply connect it, in-line, to your external filter outlet pipe and tighten the nuts. Connect your CO2 regulator to the atomizers CO2 input with air hose tubing and tighten the safety nut. The tiny bubbles that the atomizer produces will then spread evenly around the whole tank, ensuring a uniform spread of CO2.

Instructions

  • Inline atomizers are to be installed on the return / outflow tubing from a filter as the water is reintroduced to the aquarium.
  • Cut or replace your filter tubing with PVC tubing.
  • Push tubing on to each end of the diffuser.
  • Screw the retaining nuts back over the tubing to hold in place.
  • Unscrew the small nut on the CO2 inlet.
  • Feed CO2 tubing through the nut and onto the CO2 inlet.
  • Tighten the nut onto the CO2 inlet to secure the tubing.
  • Turn CO2 on, allow pressure to build within the diffser.
  • Adjust dosing / bubble rate accordingly.
