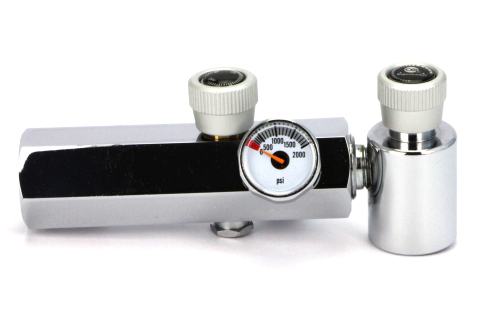

Quooker Cylinder Refilling Adapter
£57.99
Quooker Cylinder Refilling AdapterKey Facts
- Safely refill Quooker cylinders from a larger donor cylinder.
- Connect to DIN 477 / W21.8 / BS 341 No. 8 or CGA 320 donor/parent cylinders.
- Refill Quooker cylinders used in UK / USA / Europe (Rest of World), or in Australia / New Zealand.
- Works on *all* types of Quooker cylinder valve, including the 'booby-trapped' model which supposedly prevent refilling.
- Quooker isolation feature for safe removal of cylinder.
- Dump / purge valve for safe and controlled release of gas.
- Integrated pressure gauge for safety and display of donor cylinder pressure.
- On / off knob for controlled release.
- Highest possible quality design and manufacture.
Description
Our Quooker Cylinder Refilling Adapter gives you the freedom and ability to refill your Quooker cylinders at a fraction of the price you pay for exchanging at a retailer. The refilling adapter is used to safely refill Quooker cylinders from larger donor cylinders. It is designed to connect to either a CGA 320 or DIN 477 / W21.8 / BS 341 No. 8 donor cylinder, and then connect either directly to the Quooker cylinder or via a optional high pressure hose as shown in the product photos.
Customer safety is always our primary consideration when designing new products, which is why our refilling adapter includes a pressure gauge to ensure the pressure of the donor cylinder will not exceed the pressure specification of the recipient cylinder, a on/off knob for easy and direct control of the refilling process, and a dump / purge valve to eject the residual gas within the connection between donor and recipient cylinder once refilling is complete.
Customer safety is always our primary consideration when designing new products, which is why our refilling adapter includes a pressure gauge to ensure the pressure of the donor cylinder will not exceed the pressure specification of the recipient cylinder, a on/off knob for easy and direct control of the refilling process, and a dump / purge valve to eject the residual gas within the connection between donor and recipient cylinder once refilling is complete.
Instructions
- Connect the refill adapter to the parent / donor cylinder.
- Screw the Quooker adapter into the refill adapter.
- Screw the Quooker cylinder into the adapter.
- Open the valve on the parent / donor cylinder to release the gas.
- Turn the shutoff valve to release the gas.
- Turn the knob of the Quooker valve to inject gas into the cylinder.
- You will hear gas flowing into the cylinder. Refilling takes roughly 30 seconds.
- Once refilling is complete, stop the CO2 by turning the shutoff valve.
- Isolate the Quooker cylinder by turning the adjuster knob.
- Release the residual gas by opening the dump / purge valve.
- Remove the Quooker cylinder from the adapter.
- Repeat the refill process for each Quooker cylinder.
- Once finished, close the valve on the parent / donor cylinder.
- Click here to read the full Quooker Cylinder Refill Adapter instructions
