The Precision flow controller from Cazmozzi enables you to fine-tune your CO2 dosing to incredible accuracy. With this flow controller you can define dosing as low as 1 bubble/30 seconds, right up to constant / full open flow.
Configuration A
1 x Camozzi Precision Flow Controller
2 x Compression fittings for 4/6mm tubing.

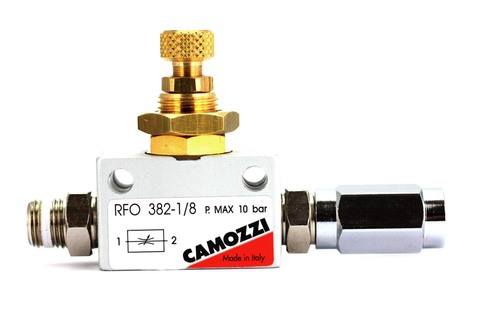

Configuration B-A
1 x Camozzi Precision Flow Controller
2 x 1/8" Male Nipple
1 x 24mm Extension

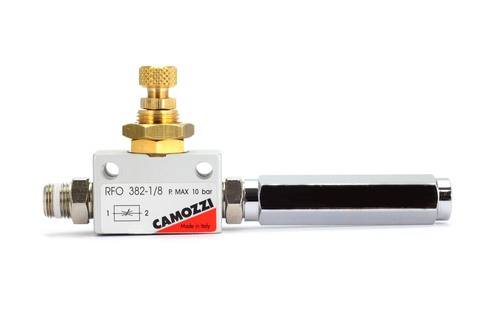

Configuration B-B
1 x Camozzi Precision Flow Controller
2 x 1/8" Male Nipple
1 x 57mm Extension

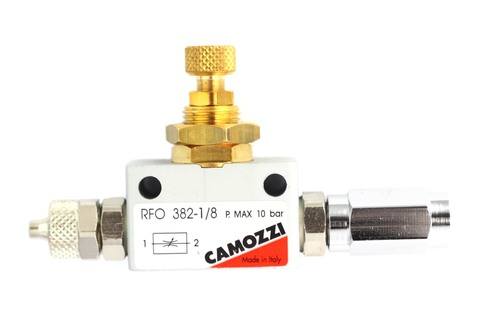

Configuration C-A
1 x Camozzi Precision Flow Controller
1 x 1/8" Male Nipple
1 x 24mm Extension
1 x Compression fittings for 4/6mm tubing.

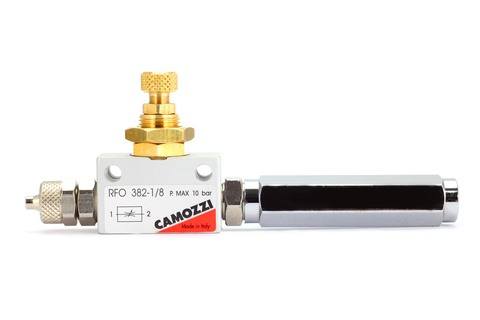

Configuration C-B
1 x Camozzi Precision Flow Controller
1 x 1/8" Male Nipple
1 x 57mm Extension
1 x Compression fittings for 4/6mm tubing.
Instructions
- The flow controller will come with connectors pre-attached. To attach the flow controller to your existing needle valve...
- Locate the two O-rings provided with the part.
- Attach the small O-ring to the outlet of your existing needle valve, and insert the larger O-ring into the threaded well of the extension.
- Screw the extension on to the needle valve and firmly tighten using a spanner.
- Fully open the original needle valve by turning anti-clockwise.
- Your CO2 dosing is now controlled by the precision flow controller.
