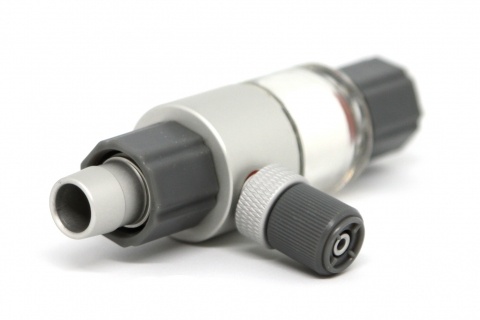

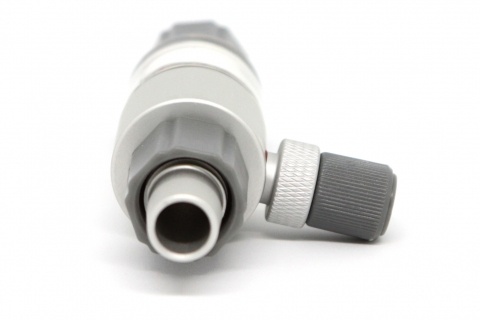

The Inline Atomizer CO2 Diffuser is arguably the most well known product used for CO2 diffusion, and is a firm favourite with planted aquarium specialists around the world. Designed for use with various filter size tubing, this CO2 diffuser sits inline between your filter and the filter outlet, ensuring that the CO2 has as much contact time with the water as possible.
The atomizer diffuser dissolves CO2 very efficiently, and provides a stream of very tiny bubbles which exit directly from the filter outlet. Because the bubbles are in the flow of current from the filter this ensure the bubbles remain in suspension for longer and further improves the level of diffusion.
Furthermore, because the diffuser is deployed outside the aquarium, maintenance is a very easy.
Instructions
- Inline atomizers are to be installed on the return / outflow tubing from a filter as the water is reintroduced to the aquarium.
- Cut or replace your filter tubing with PVC tubing.
- Push tubing on to each end of the diffuser.
- Screw the retaining nuts back over the tubing to hold in place.
- Unscrew the small nut on the CO2 inlet.
- Feed CO2 tubing through the nut and onto the CO2 inlet.
- Tighten the nut onto the CO2 inlet to secure the tubing.
- Turn CO2 on, allow pressure to build within the diffser.
- Adjust dosing / bubble rate accordingly.
