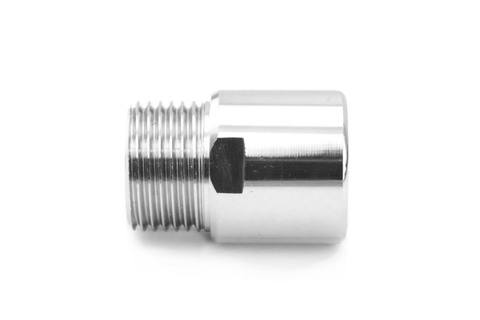

This adapter will allow you to connect a standard CO2 regulator (with DIN477 / JIS m22-14 / W21.8-14 / .860" x 1/14 nut - covers UK, Europe and Asia) to a Paintball CGA 320 cylinder. Quick and easy installation.
Paintball cylinders (and CO2 refills) are readily available from paintball centres country-wide, ensuring a supply of CO2 is always easy to obtain.

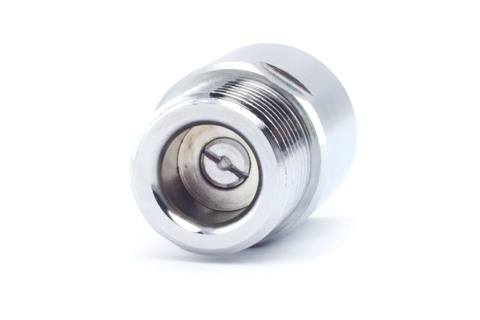

To use the adapter, ensure the adapter's valve pin is full retracted by turning the adjuster knob anti-clockwise, then screw the adapter onto the Paintball cylinder and tighten as much a possible by hand. Then attach your regulator to the adapter using an appropriate wrench or spanner. Then turn the release valve of the adapter to start the flow of gas.
Instructions

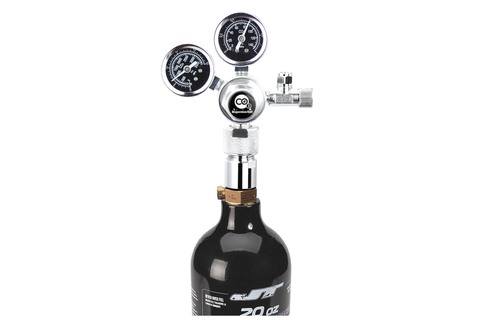

- Attach your regulator to the adapter using an appropriate wrench or spanner.
- Holding the Paintball cylinder firmly with one hand, tighten the adapter/regulator to the cylinder using a wrench or spanner.

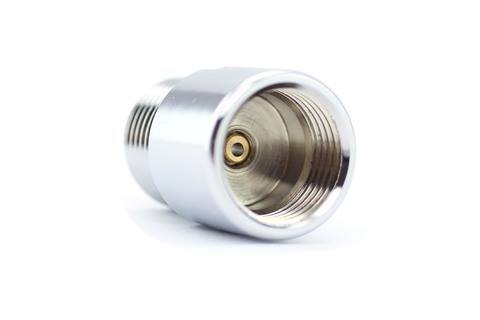

- The pin inside the adapter will depress the valve on the Paintball cylinder to open the flow of gas.
- Continue to tighten the adapter to the cylinder until the cylinder slips in your hand.
- Click here to read the full Paintball CGA 320 Adapter setup guide
